EVAL™ monolayer film

Overview

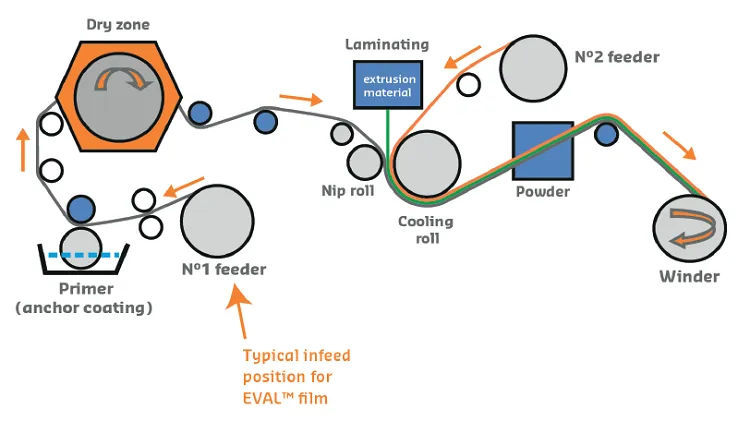

EVAL™ film is a monolayer film made by Kuraray in Japan, composed of either F-type or E-type of EVAL™ resin. It can be easily laminated to other materials. Depending on the application requirements, it can be used as either the surface, interior or sealing layer.

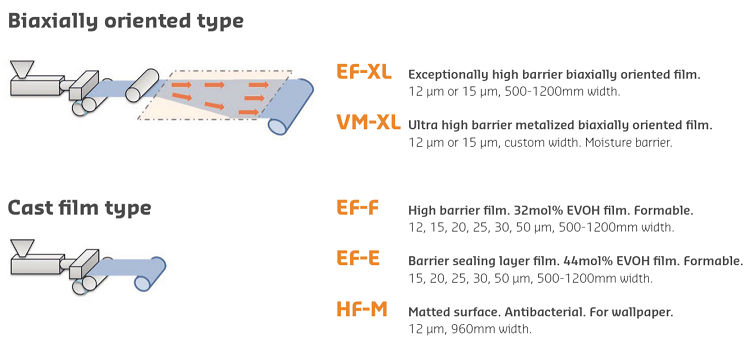

EVAL™ monolayer film provides ultra high barrier performance from biaxially oriented and even metalized EVOH. Several grades of EVAL™ film take EVOH high barrier, chemical resistance and anti-scalping properties to industrial, pharmaceutical and other applications not possible with co-extrusion.

Example

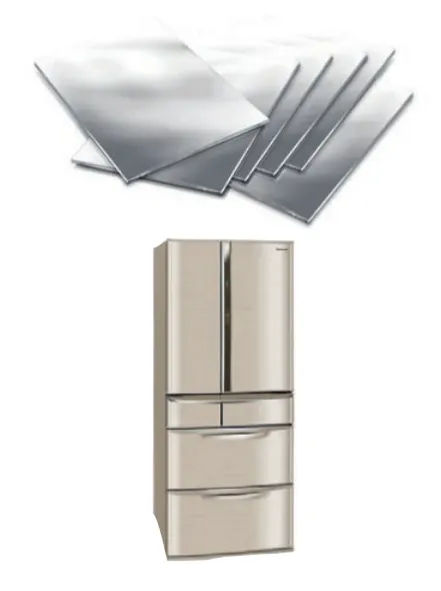

Industrial (Vacuum Insulation Panels)

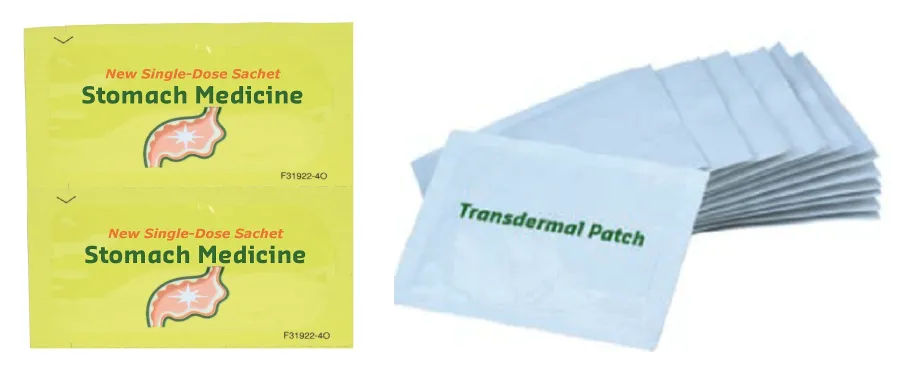

Medical & pharmaceutical
Pet food

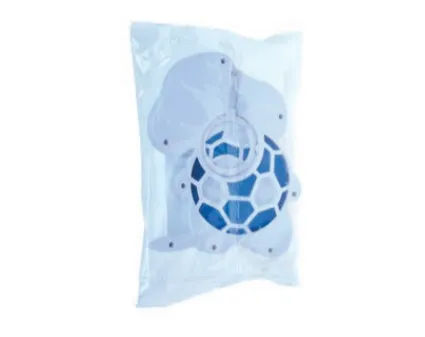

Insect repellent

Ultra-High Barrier Performance: EVAL™ film offers protection against gases such as Oxygen, MAP gases like CO₂ and N₂, and even rarer gases like Helium, Hydrogen, and Argon, ensuring contents remain fresh and uncontaminated.
Chemical Resistance: With its unique composition, EVAL™ film exhibits strong resilience against solvents, making it an ideal choice for chemical packaging and safeguarding volatile substances.
Anti-Scalping Properties: EVAL™ film retains essential ingredients, aromas, and flavours, preventing them from being absorbed into the packaging material, ensuring product integrity.

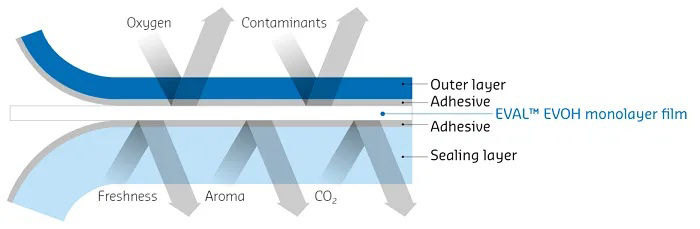

Versatility in Lamination: Made by Kuraray in Japan, EVAL™ film can be easily laminated to various materials and tailored for use as the surface, interior, or sealing layer, depending on application requirements.
Alternative to Aluminium Foil: Offering a plastic solution with exceptional aroma retention, EVAL™ film is an environmentally friendly and efficient alternative to traditional aluminium foil in packaging.CO₂
